Whatever building project you’re undertaking, we can fabricate universal steel columns in a range of sizes to meet your requirements. And if the size you need isn’t listed, we’ll be happy to discuss measurements with you.

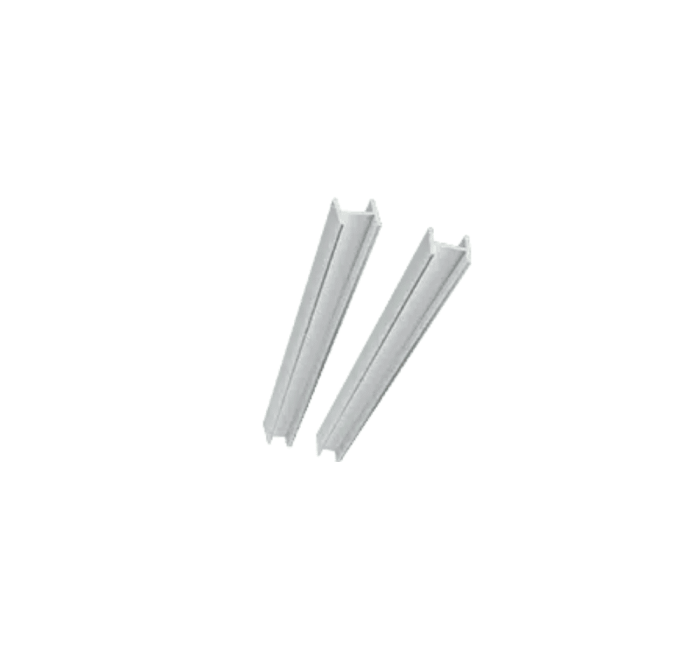

Universal columns, also known as UCs, are structural steel columns that are widely used in the construction industry. These columns are characterized by their H-shaped cross-section, which makes them very strong and able to support heavy loads.Universal columns are made from high-quality steel and are designed to provide structural support in a variety of building applications, including commercial buildings, bridges, warehouses, and high-rise buildings. They come in a range of sizes and weights, allowing architects and engineers to choose the appropriate column for the specific application.
One of the key advantages of universal columns is their versatility. They can be used in a variety of configurations, such as single columns, columns in pairs, or as part of a beam structure. They are also compatible with other steel products, such as beams, channels, and angles, which makes them ideal for use in complex building projects.
In addition to their strength and versatility, universal columns are also very durable and require little maintenance. They are designed to withstand extreme weather conditions and are resistant to corrosion, making them a popular choice for both indoor and outdoor applications.
Overall, universal columns are an essential component in the construction industry, providing structural support and stability to a wide range of building projects.
Designation Size | Mass Per Metre | Depth | Width | Web Thickness | Flange Thickness |
---|---|---|---|---|---|
(kg/m) | (mm) | (mm) | (mm) | (mm) | (mm) |
152x152 | 23 | 152.4 | 152.2 | 5.8 | 6.8 |
152x152 | 30 | 157.6 | 152.9 | 6.5 | 9.4 |
152x152 | 37 | 161.8 | 154.4 | 8 | 11.5 |
203x203 | 46.1 | 203.2 | 203.6 | 7.2 | 11 |
203x203 | 52 | 206.2 | 204.3 | 7.9 | 12.5 |
203x203 | 60 | 209.6 | 205.8 | 9.4 | 14.2 |
203x203 | 71 | 215.8 | 206.4 | 10 | 17.3 |
203x203 | 86.1 | 222.2 | 209.1 | 12.7 | 20.5 |
254x254 | 73.1 | 254.1 | 254.6 | 8.6 | 14.2 |
254x254 | 88.9 | 260.3 | 256.3 | 10.3 | 17.3 |
254x254 | 107.1 | 266.7 | 258.8 | 12.8 | 20.5 |
254x254 | 132 | 276.3 | 261.3 | 15.3 | 25.3 |
254x254 | 167.1 | 289.1 | 265.2 | 19.2 | 31.7 |
305x305 | 96.9 | 307.9 | 305.3 | 9.9 | 15.4 |
305x305 | 117.9 | 314.5 | 307.4 | 12 | 18.7 |
305x305 | 136.9 | 320.5 | 309.2 | 13.8 | 21.7 |
305x305 | 158.1 | 327.1 | 311.2 | 15.8 | 25 |
305x305 | 198.1 | 339.9 | 314.5 | 19.1 | 31.4 |
305x305 | 240 | 352.5 | 318.4 | 23 | 37.7 |
305x305 | 282.9 | 365.3 | 322.2 | 26.8 | 44.1 |
356x368 | 129 | 355.6 | 368.6 | 10.4 | 17.5 |
356x368 | 152.9 | 362 | 370.5 | 12.3 | 20.7 |
356x368 | 177 | 368.2 | 372.6 | 14.4 | 23.8 |
356x368 | 201.9 | 374.6 | 374.7 | 16.5 | 27 |
356x406 | 235.1 | 381 | 394.8 | 18.4 | 30.2 |
356x406 | 287.1 | 393.6 | 399 | 22.6 | 36.5 |
356x406 | 339.9 | 406.4 | 403 | 26.6 | 42.9 |
356x406 | 393 | 419 | 407 | 30.6 | 49.2 |
356x406 | 467 | 436.6 | 412.2 | 35.8 | 58 |
356x406 | 551 | 455.6 | 418.5 | 42.1 | 67.5 |
356x406 | 633.9 | 474.6 | 424 | 47.6 | 77 |
